SEQ4.2: 4-step CV sequencer with reset (4HP)
Due to the compliance requirements of the European Union GPSR (General Product Safety) Regulations I am currently unable to ship to the following destinations: Austria, Belgium, Bulgaria, Croatia, Cyprus, Czechia, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Ireland (including Northern Ireland), Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Poland, Portugal, Romania, Slovakia, Slovenia, Spain and Sweden. In addition, I am unable to ship to Norway, Iceland or Liechtenstein.

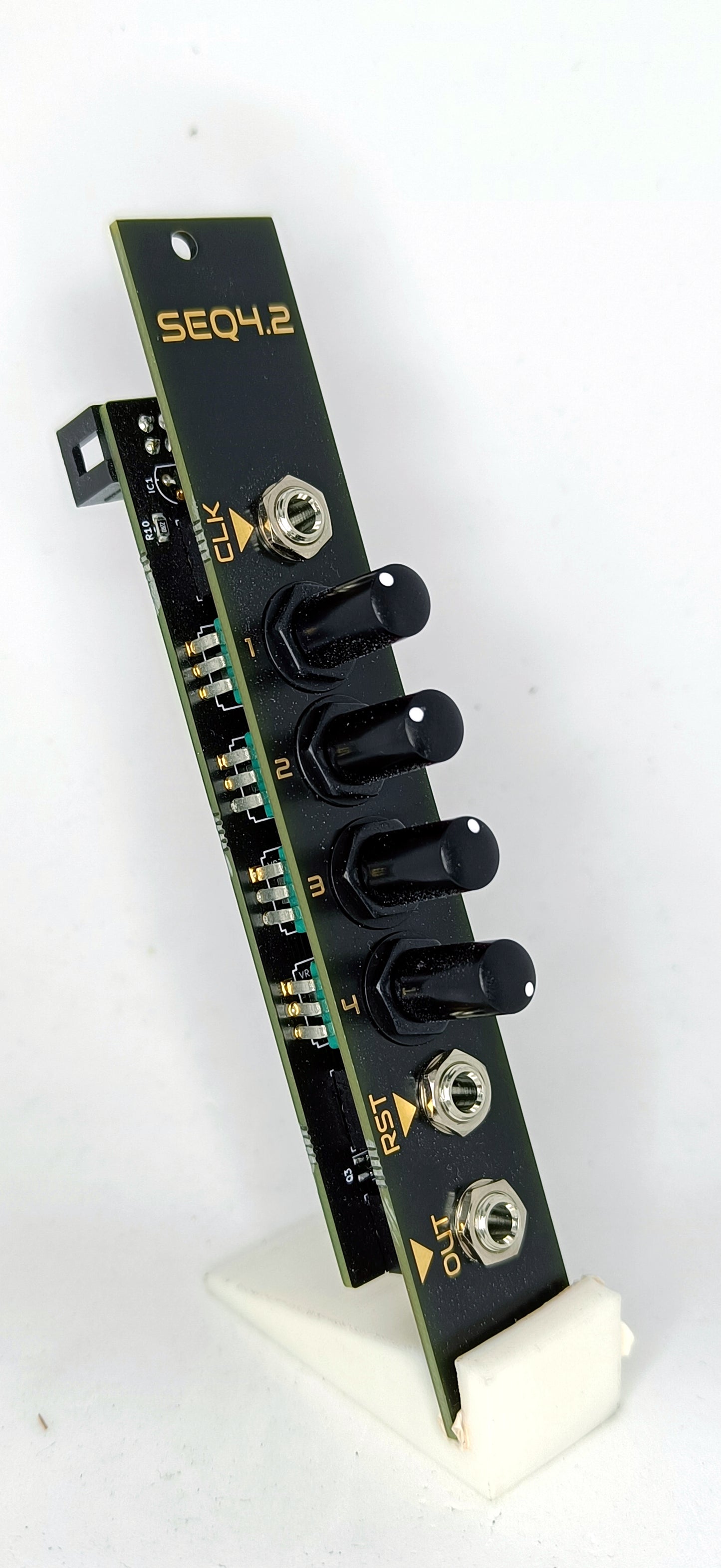

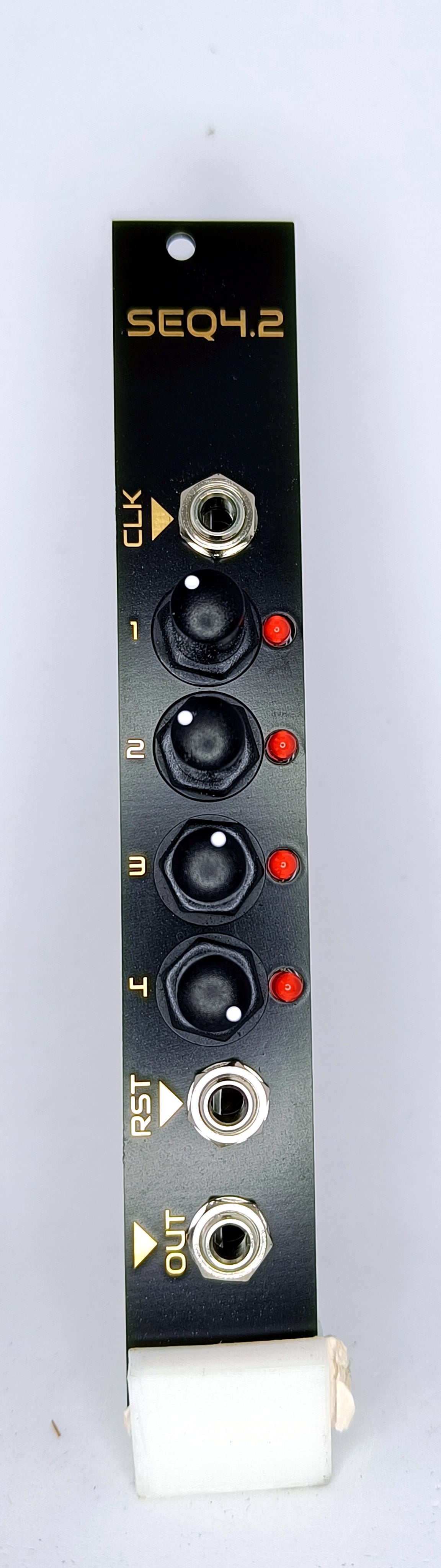

A revamped version of my original 4-step CV sequencer.

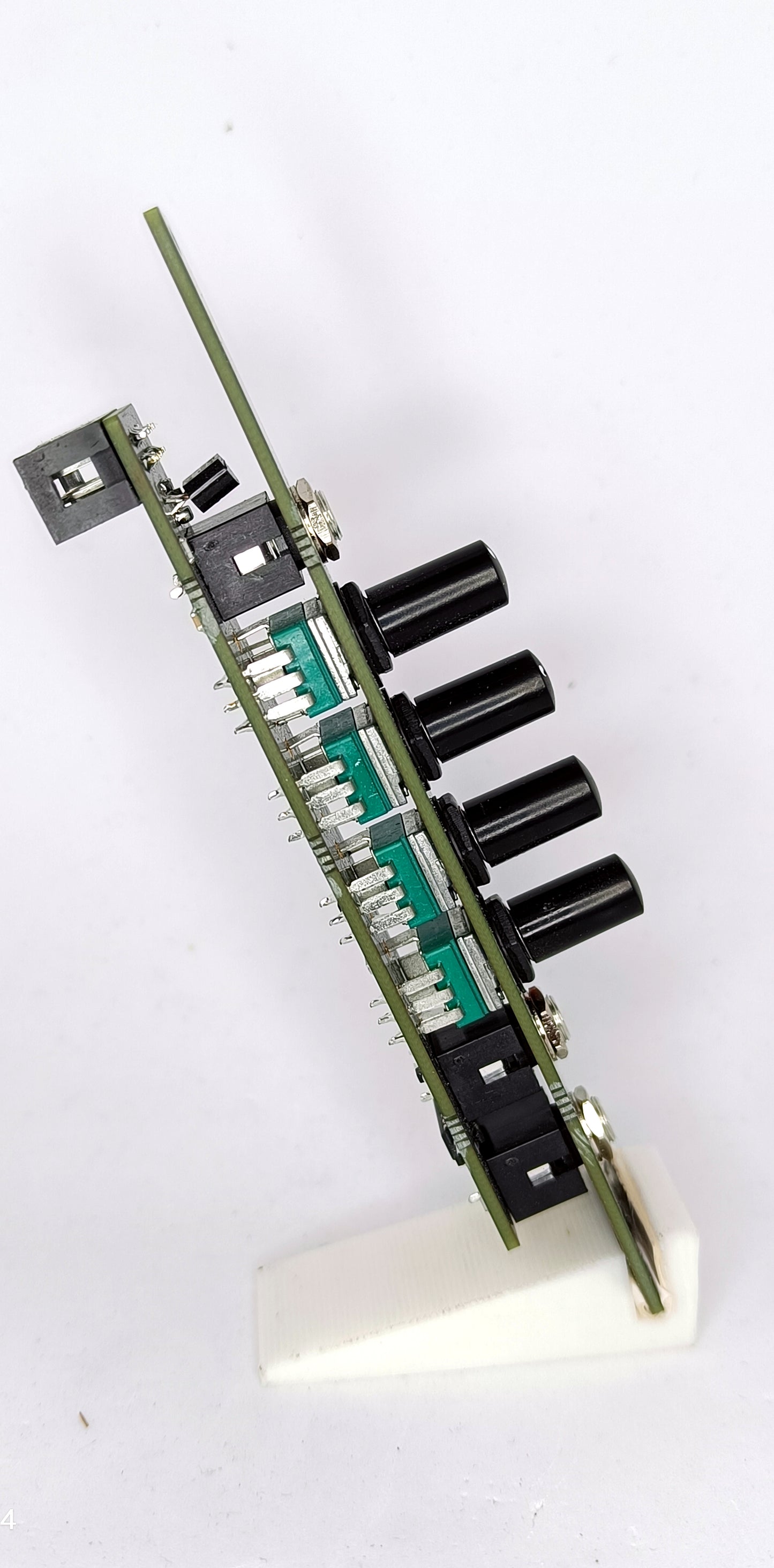

Nothing flash here, just a regular sequencer with four steps, a reset input and an output - no muss, no fuss. Plus, it fits behind a 4HP panel.

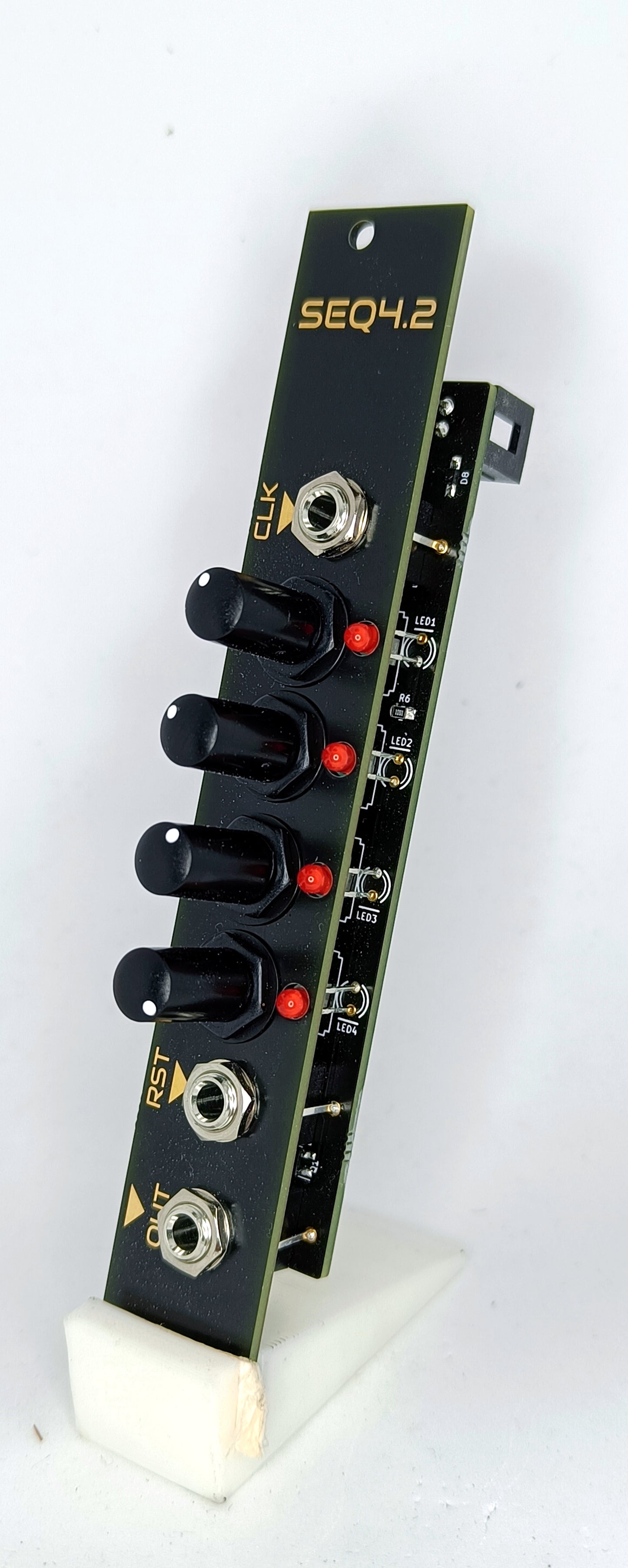

The obligatory blinkenlights are present and correct, too. Trigger and clock require at least 5V to activate (more is better, within reason) and some clock sources may require buffering - this is highly dependent on the source, though.
Both clock and reset will trigger on the rising edge of an incoming signal - furthermore, the sequencer will be held at step 1 for as long as the reset signal is high. Counting will not resume until the reset signal goes low again.
Power cable and mounting hardware are supplied.
CURRENT CONSUMPTION: varies with clocking speed - figure on 15-20mA (+12). Does not use -12V.
