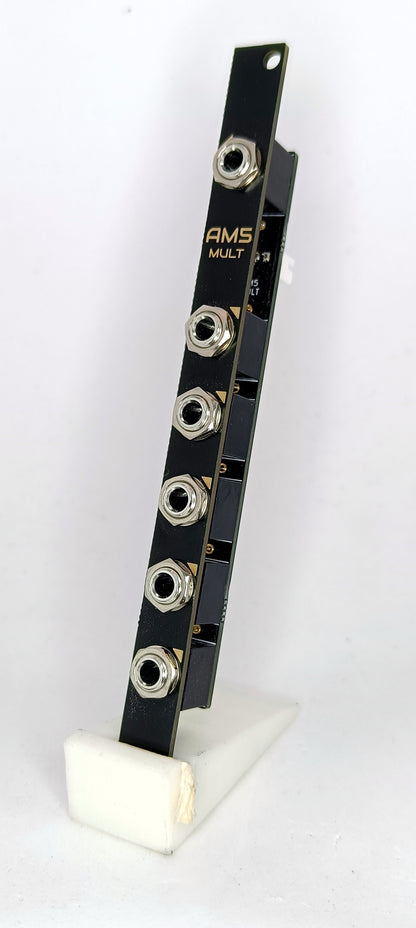

AM5: 5-way buffered multiple module (2HP)

NEW MODULES NOW SHIP WITH A BLACK FACEPLATE - modules with purple panels are discontinued and are no longer available.

A 5-way buffered multiple in 2HP

Inputs are resistively coupled, so this module can be used for both control voltages and audio signals.

Power is provided via a JST-to-Eurorack adapter, which is included with the module.

WHAT DOES IT DO? A mult (multiple) will duplicate a signal - whatever is presented at the input will be duplicated, unmodified, at each of the outputs. Thus, you can use it to send a signal to multiple modules simultaneously.

Mults can be active or passive - passive mults do not require any power, but there's a chance of a small voltage drop between the input and outputs. For this reason, if you're planning to route a control voltage to a VCO, or similar module which is sensitive to input voltages, an active mult is preferable.
